If you are already in the program:
Video below article
- Click on cancel followed by alpha (on 6210 cancel + func), you will see a screen asking for a password:

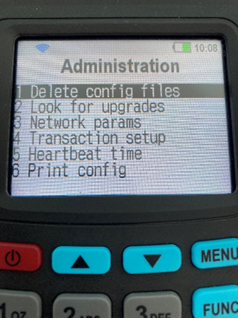

- Type 999 and click on enter. You will now see the administration menu.
- Go to 11. Exit App Manager (using the arrows)
- Menu "App Manager" appears
- Click on the Menu button, the system manager will now appear.
- Go to system setup – Network - Eth0 – Static configuration
- Enter here all static IP address parameters : IP, Mask, Gate, DNS1, DNS2
(correct each line to be edited with <Clear> to go back. To enter a ".", enter <0> followed by <Alpha>), and go to the next line with <Enter>)
- When entered the last line, the terminal shows:
- Active eth0
Yes No
Confirm with <Enter> for Yes.
- Active eth0
- Now "dhcp" is disabled and the static IP address is shown with "Device: Up"
- Exit the menu and restart the device
If the device is turned off
- Start the terminal
- When seeing the logo, click multiple times on the menu button until you see the System manager.
- Continue following previous procedure
